Power supply




Product presentation

The HPS01 power supply is a versatile device, suitable for electrophoresis applications in small and medium sized tanks. It holds a stable output voltage in a wide range of loads. The HPS01 boasts 3 pairs of output connectors allowing 3 electrophoresis procedures at the same time.

       Package Content:

  •  1 device
  •  1 power line cord
  •  instructions for use
  •  warranty certificate



       Features

  • Small size metal case.
  • Last settings remains in memory.
  • Simple running with one button.
  • Illuminated message and parameters LCD, 2x16 characters.
  • Operation and settings by 4 buttons only.
  • Sound buzzer aids on settings or alarm.



Specifications

Operating voltage:

230Vac. +/-10%

Output voltage range:

35-220 Vdc

Max output current:

400 mA

Max output power:

88 Watt

Min resistor load:

88 ohm

Setup resolution:

1 V

Time setting range:

1 – 60min

Ambient temperature:

0 - 40 0C

Relative humidity:

0 - 90%

Dimensions (WxDxH):

26.1x22x9 cm

Weight:

4 Kg

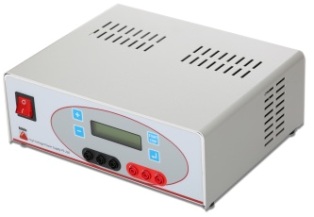

Power supply photo
HPS01 version 2.3 users manual
HPS01 version 2.4 users manual
